Aligning Annotations

Annotations can be aligned or evenly distributed on the page if needed. Annotations can be aligned using any of the below methods. When aligning annotations 2 or more annotations must be selected.

From the Toolbar

  1. Using the Hand Tool or Object Selection Tool Select the annotations that you wish to align.
  2. Click the button in the Properties Tab on the toolbar to align the annotation

From Right Click Context Menu

  1. Using the Hand Tool or Object Selection Tool Select the annotations that you wish to align.
  2. Right click, (Mac: Ctrl + Click) on any of the selected annotations and go to Alignment and select the alignment you wish to perform

Alignment Examples

Original Distribute Horizontally Distribute Vertically
Align Left Align Center Align Right

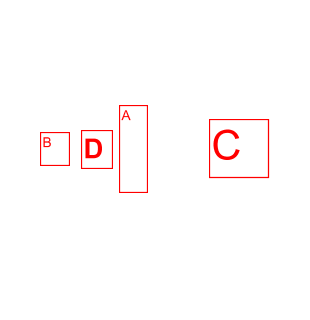

Align Top Align Middle Align Bottom
Align Width Align Height Align Both
