Aligning Form Fields

Form fields can be aligned or evenly distributed on the page if needed. Form fields can be aligned using any of the below methods. Two or more form fields must be selected in order to use the alignment tools.

From the Toolbar

  1. Using the Object Selection Tool select the form fields that you wish to align.
  2. Click the button in the Properties Tab to align the fields

From Right Click Context Menu

  1. Using the Object Selection Tool select the form fields that you wish to align.
  2. Right click, (Mac: Ctrl + Click) on any of the selected form fields and go to Alignment and select the alignment you wish to perform

Alignment Examples

Original Distribute Horizontally Distribute Vertically

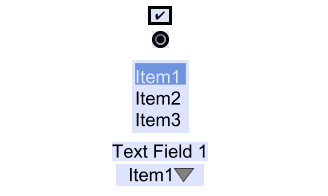

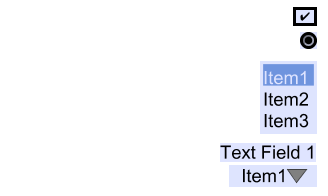

Align Left Align Center Align Right
Align Top Align Middle Align Bottom
Align Width Align Height Align Both
