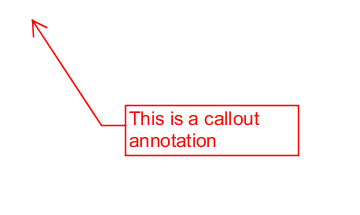

The callout tool creates a text note with an arrow on the document that can point to a specific spot on the page. The text is contained within a box that is created when placing the callout on the page. Once placed you can move the arrow or resize the box to reflow the text within the boxes as well as edit additional properties using the Quick Properties or Mini Toolbars.
To access the Callout properties right click (Mac: Ctrl + Click) on the annotation and choose Properties in the mouse menu or click on the edit button on the Mini Toolbar. The Callout annotation contains the following property settings.
Border Width - Sets the width of the border line
Style - Sets the style for the border line (i.e. dotted, dashed, cloud, etc...) Note: Choosing the cloud style on a callout only changes the text box. The line and arrow will remain solid
Border Color - Sets the color of the border
Fill Color - Sets the fill color
Text Color - Sets the text color
Horiz Align - Sets the horizontal alignment of the text
Font - Sets the font of the text
Size - Sets the font size of the text
B - Makes all of the text Bold
I - Makes all of the text Italic
U - Makes the selected annotation text underlined
S - Marks the selected annotation text with a strikethrough
Transparency - Sets the transparency of the text annotation
Save as default - When checked this will make the selected appearance settings the default for any new Callout annotations going forward
Locked - When checked prevents the following on the annotation: being moved or resized, editing appearance properties, & deleting the annotation.
Author - Allows you to edit the author
Subject - Allows you to edit the subject
Layer - Only available when the document contains layers. Sets the layer that the annotation belongs to. For more information see Assigning Comments to Layers
This tab will display and changes to the review status of the annotation including Author, Status, and Timestamp. For more details see Setting Status or Check Marks on Annotations
